ACT1100/1700 series crystal oscillators are high-precision crystal oscillators with frequency range from 500KHz to 125MHz, working temperature range from 0-70°, working voltage 3.3V/5.0V, output current 15mA/25mA and output logic TTL/HCMOS

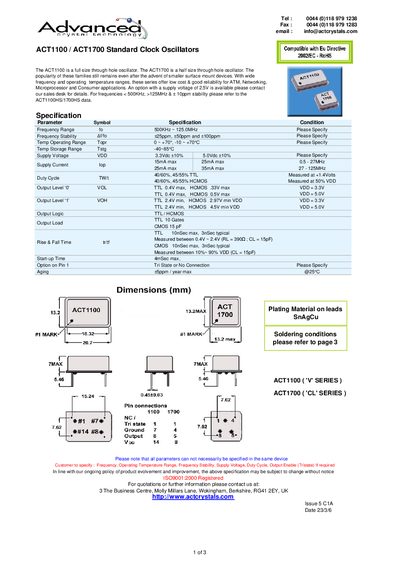

This document provides a technical overview of the ACT1100 (full size) and ACT1700 (half size) through-hole clock oscillators. These devices are designed for low-cost applications in ATM, networking, microprocessor systems, and consumer electronics, offering wide frequency ranges from 500KHz to 125MHz.
| Frequency Range | 500KHz ~ 125.0MHz |
|---|---|
| Supply Voltage (3.3V) | 15mA max |
The maximum aging rate is +5ppm per year at 25°C.
Yes, an option with a supply voltage of 2.5V is available upon request.
