74AHC1G02/AHCT1G02 is a high-speed Si-gate CMOS device from Philips Semiconductors. It provides the 2-input NOR function. It has symmetrical output impedance, high noise immunity, ESD protection, low power dissipation, balanced propagation delays, very small 5-pin package and standard output capability. The operating temperature range is -40 to +125 °C.

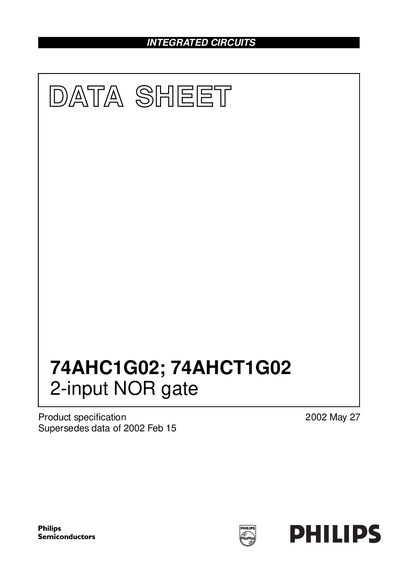

This document is a product specification datasheet for the Philips 74AHC1G02 and 74AHCT1G02 integrated circuits. These devices are described as high-speed Si-gate CMOS logic chips featuring symmetrical output impedance, ESD protection, and low power dissipation.
| Operating temperature range | -40 to +125 °C |
|---|---|
| Number of pins | 5 |
The maximum power dissipation per package is 250 mW.
The supply voltage must be between a minimum of 0.5 V and a maximum of 470 V.
The typical propagation delay is 3.2 ns for the 74AHC1G02.
