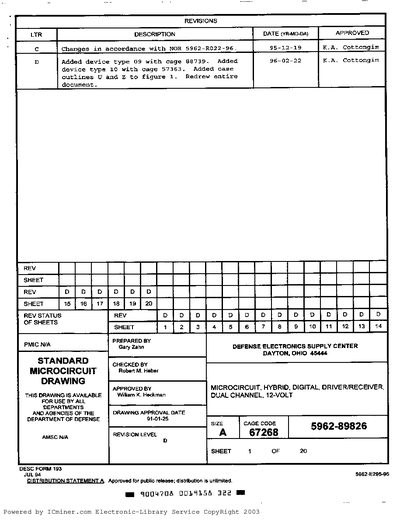

This document is a standard drawing (Size A) describing the requirements for Class H hybrid microcircuits with Part or Identifying Number (PIN) 5962-89826. It specifies device types ranging from coupling transformers to various ARX and WHI configurations, along with case outlines U through Z.
| Receiver differential voltage | 80 Vp-p |
|---|---|
| Power dissipation (Pp) at Tc = +125°C (device 01) | 70 mW |
The PIN consists of the drawing number, device type, case outline, and lead finish.
The device can operate within a storage temperature range of -65°C to +150°C.
The devices are processed in accordance with MIL-PRF-38534.
