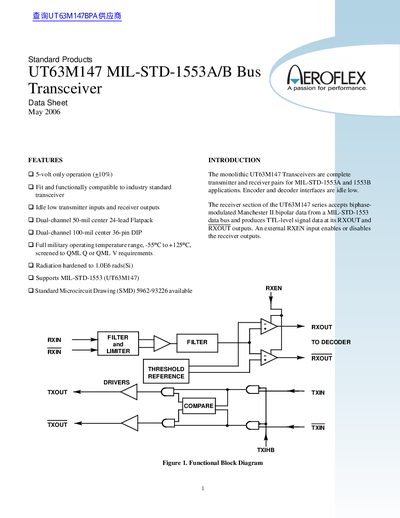

The UT63M147 is a complete transmitter and receiver pair for MIL-STD-1553A and 1553B applications
The Standard Products UT63M147 series consists of complete transmitter and receiver pairs designed for use with MIL-STD-1553A and 1553B data buses. These monolithic transceivers operate on a single +5V supply and are available in dual-channel 24-lead flatpack or 36-pin DIP configurations.
The device supports both direct-coupling (short-stub) and transformer-coupling (long-stub) connections to the data bus. It features idle-low inputs and outputs, a full military operating temperature range of -55°C to +125°C, and is screened to QML-Q or QML-V requirements.
| Supply Voltage | +5V only (+10%) |
|---|---|
| Operating Temperature Range | -55°C to +125°C |
| Radiation Hardness | 1.0E6 rads(Si) |
| Package Types | 24-lead Flatpack, 36-pin DIP |
| Data Bus Compatibility | MIL-STD-1553A and 1553B |
| Receiver Input Type | Manchester II bipolar |
The UT63M147 operates on a +5V supply with a tolerance of +10%.
Yes, it is hardened to 1.0E6 rads(Si).
The transceiver is available in a dual-channel 24-lead flatpack or 36-pin DIP configuration.
