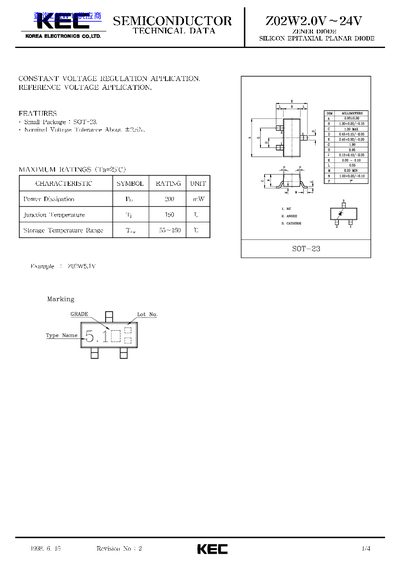

This document provides technical specifications for the KEC Z02W series of zener diodes. The components are described as silicon epitaxial planar diodes designed for constant voltage regulation and reference voltage applications.
The datasheet details maximum ratings such as power dissipation (200 mW) and junction temperature (150 C). It also lists specific electrical characteristics including Zener voltage ranges, dynamic impedance, knee current, and reverse current for various voltage grades from 2.0V to 24V.
| Package Type | SOT-23 |
|---|---|
| Power Dissipation | 200 mW |
| Junction Temperature | 150 C |
| Storage Temperature Range | -55 ~ 150 C |
The maximum power dissipation rating is 200 mW.
The junction temperature ranges from a minimum of -55 C to a maximum of 150 C.
The nominal voltage tolerance is about +2.5%.
