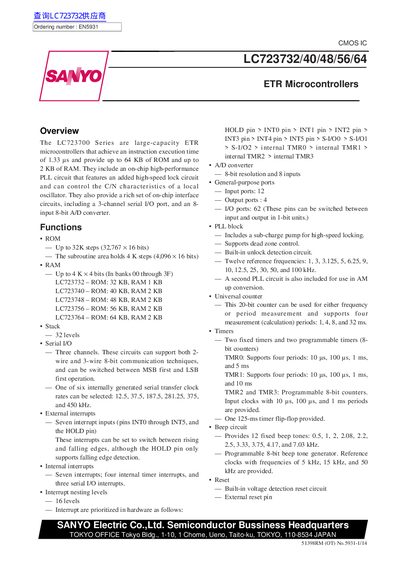

The LC723700 Series are large-capacity ETR microcontrollers that achieve an instruction execution time of 1.33 µs and provide up to 64 KB of ROM and up to 2 KB of RAM. They include an on-chip high-performance PLL circuit that features an added high-speed lock circuit and can control the C/N characteristics of a local oscillator. They also provide a rich set of on-chip interface circuits, including a 3-channel serial I/O port, and an 8- input 8-bit A/D converter.
The document describes the LC723700 Series of large-capacity ETR (Enhanced Timer/Real-time) microcontrollers manufactured by Sanyo. These devices achieve an instruction execution time of 1.33 µs and provide up to 64 KB of ROM and up to 2 KB of RAM. Key features include an on-chip high-performance PLL circuit with a high-speed lock circuit, a rich set of interface circuits such as a 3-channel serial I/O port, and an 8-bit A/D converter.
| Instruction execution time | 1.33 µs |
|---|---|
| ROM capacity (max) | 64 KB |
| RAM capacity (max) | 2 KB |
| Serial I/O channels | Three channels |
| A/D converter resolution | 8-bit |
| Operating supply voltage | 4.5 to 5.5 V |
| Package type | QFP100E |
| Operating temperature range | -40 to +85 °C |
The series includes LC723732, LC723740, LC723748, LC723756, and LC723764.
It has seven external interrupt inputs (pins INTO through INTS) and one HOLD pin.
