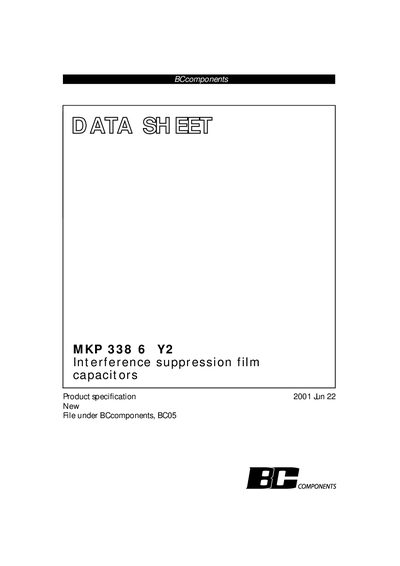

This document describes the features and characteristics of BCcomponents MKP 338 6 Y2 interference suppression film capacitors, which are designed for Y2 electromagnetic interference suppression. They have lead pitches ranging from 7.5 to 27.5 mm and consist of a low-inductive wound cell of metallized polypropylene film, potted in a flame-retardant case. The product complies with IEC 60384-14 2nd edition, EN 132400, UL1414, and CSA-C22.2 No. 1 specifications.
This document is a product specification sheet for the BCcomponents MKP 3386 Y2 series of interference suppression film capacitors. These radial potted type capacitors feature lead pitches ranging from 7.5 mm to 27.5 mm, with options for bent-back leads. They are constructed using low-inductance wound cells of metallized polypropylene film potted in a flame-retardant case.
| Capacitance range | 1 to 470 nF |
|---|---|
| Rated AC voltage | 300 V |
| Rated DC voltage | 1000 V |
| Climatic category | 55/105/56/B |
| Rated temperature | 105 °C |
| Safety class | Y2 |
The available tolerances are +20%, +10%, and -45%.
The maximum application temperature is 105 °C.
It must withstand a solder bath at 260 °C for 10 seconds.
The voltage proof test requires 2250 V (DC) for 1 minute.
