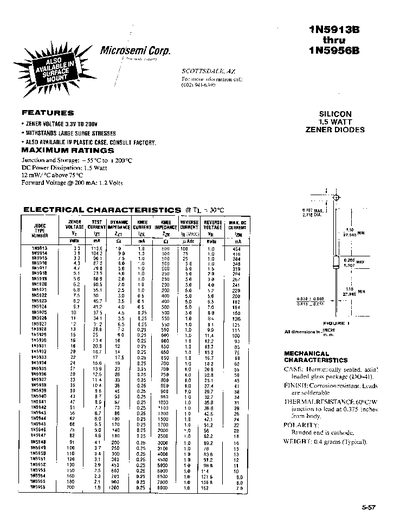

This document provides technical specifications for the Microsemi 1N5913B through 1N5956B series of silicon zener diodes. The devices are rated at 1.5 Watts and feature a junction temperature range from -55°C to +200°C.
| Zener Voltage Range | 3.4 to 200V |
|---|---|
| DC Power Dissipation | 1.5 Watt |
| Junction Temperature Range | -55°C to +200°C |
| Package Type | Hermetically sealed, axial leaded glass package (DO-41) |
| Thermal Resistance | 60°C/W junction to lead |
The zener voltage (Vz) is measured at TL = 30°C.
The banded end of the component indicates the cathode.
