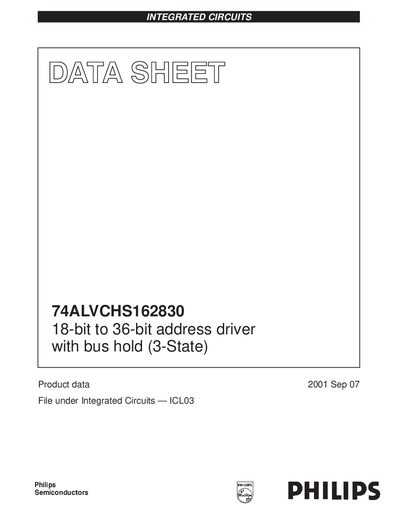

The 74ALVCHS162830 is an address driver produced by PHILIPS. It has a bus hold function (3-state) and is designed for 2.3 V to 3.6 V VCC operation. The product is packaged in TVSOP and has a balanced ±12 mA output drive with low noise and low skew.
The Philips 74ALVCHS162830 is an integrated circuit designed as an 18-bit to 36-bit address driver featuring bus hold (3-State) functionality. It is optimized for use in SDRAM module applications, specifically with the PCK953 component.
The device operates within a supply voltage range of 2.3 V to 3.6 V and includes diodes on inputs to clamp overshoot. The outputs are designed to sink up to 12 mA and include equivalent series resistors to reduce signal overshoot and undershoot.
| Supply voltage range | 2.3 V to 3.6 V |
|---|---|
| Operating temperature range | -40 to +85 °C |
| Output drive capability | up to 12 mA |
| Package type | TVSOP (Thin very small-outline package) |
| Number of outputs | 36-bit address driver |
The device operates with a supply voltage between 2.3 V and 3.6 V.
No, the bus hold feature eliminates the need for external pullup or pulldown resistors.
