1N4001ID to 1N4007ID Rectifiers glass passivated rectifiers have high maximum operating temperature, low leakage current, excellent stability and are available in ammo-pack. This document provides the products limiting values, forward current, reverse current, forward voltage and reverse voltage.

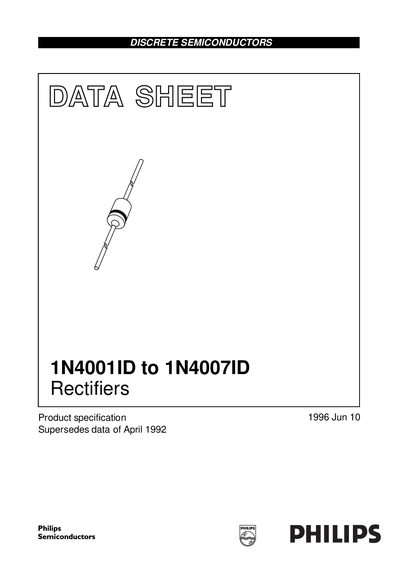

This document is a product specification datasheet for the Philips 1N4001ID through 1N4007ID series of rectifiers. The devices utilize Implotec technology within a hermetically sealed, cavity-free cylindrical glass package (SOD81). Key features include excellent stability and low leakage current.
The datasheet provides detailed electrical characteristics for each model in the series, specifying parameters such as repetitive peak reverse voltage ranging from 50V to 1000V. It also includes thermal resistance values, graphical data regarding forward current versus ambient temperature, and package outline dimensions.
| Repetitive peak reverse voltage (1N4007ID) | 1000 V |
|---|---|
| Average forward current (20 ms, Tamb=75°C) | 1.00 A |
| Storage temperature range | -65 +175 °C |
The devices use a cavity free cylindrical glass package through Implotec technology.
No, Philips states that these products are not designed for use in life support appliances or systems where malfunction can result in personal injury.
