The document describes the features of the BYD32 series fast soft-recovery controlled avalanche rectifiers, including glass passivation, high maximum operating temperature, low leakage current, excellent stability, and guaranteed avalanche energy absorption capability.

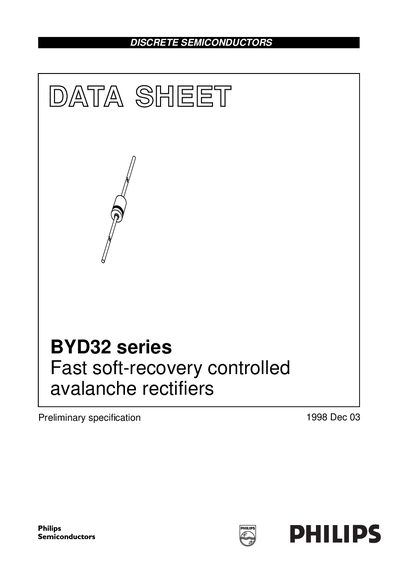

The document is a data sheet for the Philips BYD32 series of discrete semiconductors. These are fast soft-recovery controlled avalanche rectifiers designed with hermetically sealed glass passivated cavity-free cylindrical SOD 120 packages. The device features high maximum operating temperature and guaranteed avalanche energy absorption capability.
| Repetitive peak reverse voltage (BYD32D) | 200 V |
|---|---|
| Average forward current | - 0.76 A |
| Non-repetitive peak forward current | - 15 A |
| Storage temperature range | -65 to +175 °C |
| Forward voltage (typical) | 1.3 V |
| Reverse recovery time | 250 ns |
The devices use a hermetically sealed and fatigue free glass passivated Cavity free cylindrical glass SOD 120 package.
The maximum permissible junction temperature is +175 °C.
