BGM1011 is a wideband amplifier produced by Philips Semiconductors, with internal 50 ohm matching, high gain, sloped gain curve and high linearity. It is suitable for LNB IF amplifiers, cable systems and general purposes.

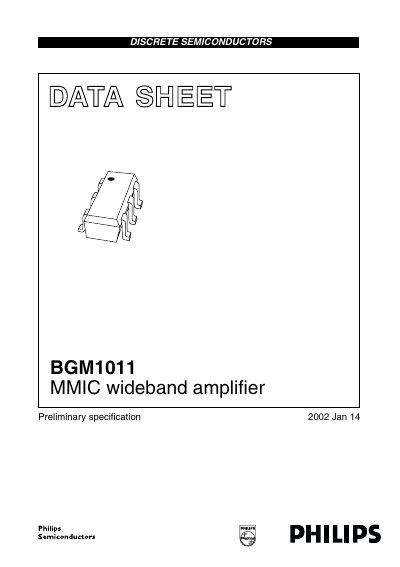

This document is a preliminary specification datasheet for the Philips BGM1011, a silicon monolithic microwave integrated circuit (MMIC) wideband amplifier. The device features internal matching to 50 Ω and is housed in a 6-pin SOT363 plastic package.
| DC supply current (typical) | 25.5 mA |
|---|---|
| Noise figure at 1 GHz | 4.7 dB |
| Saturated load power at 1 GHz | 13.8 dBm |
It is suitable for LNB IF amplifiers, cable systems, and general-purpose use.
