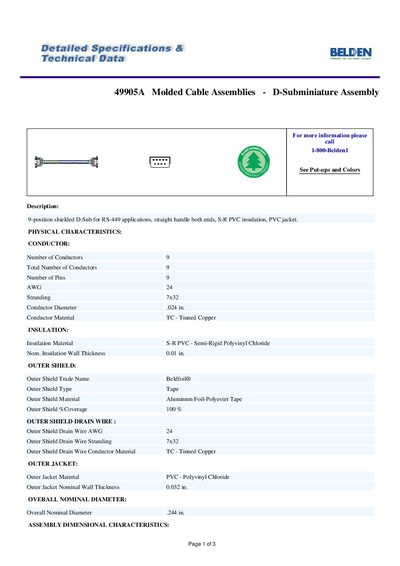

49905A Molded Cable Assemblies - D-Subminiature Assembly This cable is made of 9 AWG24 copper wires, wrapped with S-R PVC insulation layer and PVC jacket.
The 49905A Molded Cable Assembly is a 9‑position shielded D‑Sub connector designed for RS‑449 applications. It features straight handles on both ends, semi‑rigid PVC insulation, and a PVC jacket.
Key specifications include 24 conductors of tinned copper, a .244 in. overall diameter, 5 ft. assembly length, and a maximum operating voltage of 300 V RMS. The assembly complies with UL Style 2464, EU RoHS, and is not plenum rated.
| Assembly Length | 5 ft. |
|---|---|
| Max Operating Voltage | UL 300 V RMS |
| UL Temperature Rating | 80°C |
| Plenum Rated | No |
| EU RoHS Compliant | Yes |
It is rated for up to 300 V RMS according to UL AWM Style 2464.
No, the assembly is not plenum rated.
