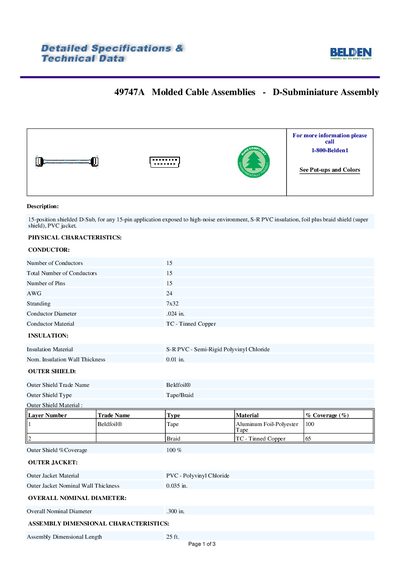

This document describes the 49747A Molded Cable Assemblies - D-Subminiature Assembly. It is a 15-position shielded D-Sub connector for any 15-pin application exposed to high-noise environment. The assembly features S-R PVC insulation, foil plus braid shield (super shield), and PVC jacket.
The 49747A is a 15‑position shielded D‑Sub cable assembly designed for high‑noise environments. It features semi‑rigid PVC insulation, a foil‑plus‑braid outer shield (Beldfoil®), and a PVC outer jacket with a nominal diameter of 0.035 in.
The assembly complies with UL AWM Style 2464 (300 V, 80 °C) and EU RoHS regulations. It is not plenum rated, and the cable is supplied with male connectors on the first end and female connectors on the second end, each with metal backshells and thumbscrew retention.
| Maximum Operating Voltage | UL 300 V RMS |
|---|---|
| UL Temperature Rating | 80 °C |
| Plenum Rating | No |
No, the cable is not plenum rated.
The cable is rated for a maximum operating voltage of 300 V RMS (UL 300 V).
