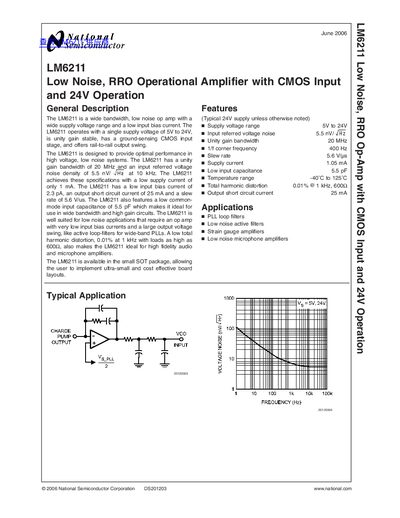

LM6211 is a wide bandwidth, low noise op amp with a wide supply voltage range and a low input bias current. The device operates with a single supply voltage of 5V to 24V, is unity gain stable, has a ground-sensing CMOS input stage, and offers rail-to-rail output swing. The LM6211 is designed to provide optimal performance in high voltage, low noise systems. The device has a unity gain bandwidth of 20 MHz and an input referred voltage noise density of 5.5 nV/A, frequency 10 kHz. LM6211 achieves these specifications with a low supply current of only 1 mA. LM6211 has a low input bias current of 2.3 pA, an output short circuit current of 25 mA and a slew rate of 5.6 V/μs. LM6211 also features a low common-mode input capacitance of 5.5 pF which makes it ideal for use in wide bandwidth and high gain circuits. LM6211 is well suited for low noise applications that require an op amp with very low input bias currents and a large output voltage swing, like active loop-filters for wide-band PLLs. A low total harmonic distortion, 0.01% at 1 kHz with loads as high as 600 Ω, also makes the LM6211 ideal for high fidelity audio and microphone amplifiers. The LM6211 is available in the small SOT package, allowing the user to implement ultra-small and cost effective board layouts.
The LM6211 operational amplifier offers a wide supply voltage range (5 V to 24 V), rail‑to‑rail output swing, and a ground‑sensing CMOS input stage. It is designed for high‑voltage, low‑noise applications such as PLL loop filters, active filters, strain‑gauge amplifiers, and microphone pre‑amps.
Typical performance specifications include a unity‑gain bandwidth of 20 MHz, input‑referred voltage noise of 5.5 nV/√Hz at 10 kHz, a supply current of about 1 mA, and an input bias current of 2.3 pA. The device is supplied in a 5‑pin SOT‑23 package for compact board layouts.
| Supply voltage range | 5 V to 24 V |
|---|---|
| Unity‑gain bandwidth | 20 MHz |
| Supply current | ≈1 mA |
| Input bias current | 2.3 pA |
| Output short‑circuit current | 25 mA |
| Slew rate | 5.6 V/µs |
| Total harmonic distortion | 0.01 % at 1 kHz |
| Input capacitance | 5.5 pF |
| Operating temperature range | -40 °C to 125 °C |
The LM6211 operates from a single supply voltage of 5 V up to 24 V.
The device has a unity‑gain bandwidth of 20 MHz.
Its input bias current is specified at 2.3 pA.
The total harmonic distortion is 0.01 % at 1 kHz.
