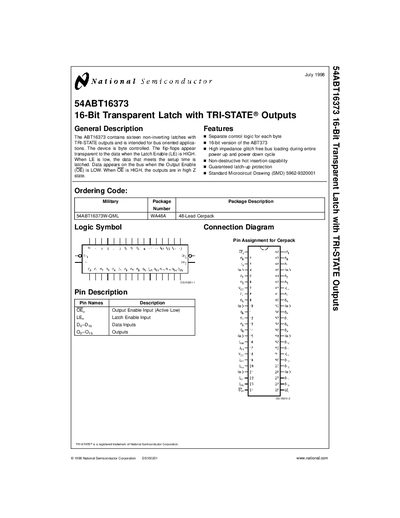

This datasheet details the features and characteristics of the 54ABT16373 16-bit transparent latch.
The document describes the 54ABT16373, a device containing sixteen non-inverting latches with TRI-STATE outputs. It is designed for byte-controlled operations where data appears on the bus when the Output Enable (OE) input is LOW and is transparent to data inputs when Latch Enable (LE) is HIGH.
The datasheet provides comprehensive technical specifications including absolute maximum ratings, DC electrical characteristics, AC operating requirements, and timing parameters. It also includes a pin description for the 48-Lead Cerpack package and physical dimensions.
| Number of Latches | Sixteen non-inverting latches |
|---|---|
| Output Type | TRI-STATE outputs |
| Package Description | 48-Lead Cerpack |
| Operating Temperature Range (Military) | -55°C to +125°C |
| Supply Voltage (Military) | +4.5V to +5.5V |
It contains sixteen non-inverting latches with TRI-STATE outputs intended for bus oriented applications.
Data appears transparent to inputs when the Latch Enable (LE) input is HIGH.
Data appears on the bus when the Output Enable (OE) input is LOW.
