This is a data sheet for MV54ACT257-X, which introduces the features of the product, including multiplexer expansion, non-inverting tri-state outputs, output source/sink 24 mA, etc.

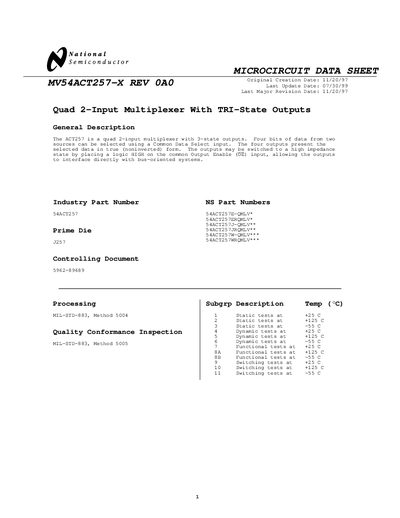

This document is a microcircuit data sheet for the MV54ACT257-X, described as a quad 2-input multiplexer with three-state outputs. The device allows four bits of data from two sources to be selected using a common data select input, presenting the selected data in true (noninverted) form.
| Supply Voltage (Vcc) | 4.5V to 5.5V |
|---|---|
| Output Source/Sink Current | 24 mA |
The outputs are capable of sourcing and sinking up to 24 mA.
The lead temperature limit is for a duration of 10 seconds.
