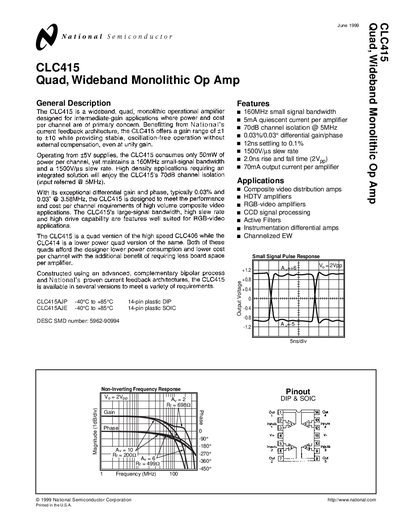

The document is the CLC415 data sheet, which introduces the features and characteristics of the product, including 160MHz small signal bandwidth, 5mA static current, 70dB channel isolation, 0.03%/0.03° differential gain/phase, 12ns settling to 0.1%, 1500V/µs slew rate, 2.0ns rise and fall time (2Vpp), 70mA output current.
The CLC415 is a wideband, quad monolithic operational amplifier designed for intermediate-gain applications where power and cost per channel are primary concerns. Operating from +5V supplies, it consumes only 50mW of power per channel while maintaining a 160MHz small-signal bandwidth and a 1500V/us slew rate.
The device is constructed using an advanced complementary bipolar process and National's proven current feedback architectures. It offers features such as 70dB channel isolation, exceptional differential gain and phase (typically 0.03% and 0.03°), and high drive capability suitable for composite video and RGB-video applications.
| Small-signal bandwidth | 160MHz (Vout<2V pp) |
|---|---|
| Slew rate | 1500V/us |
| Quiescent current per amplifier | 5mA |
| Channel isolation @ 5MHz | 70dB (input referred) |
| Differential gain/phase | Typically 0.03%/0.03° @ 3.58MHz |
| Settling time to 0.1% | 12ns (2V step) |
| Output current per amplifier | 70mA |
The recommended gain range is +1 to +10.
No, it provides stable, oscillation-free operation without external compensation even at unity gain.
The device operates from +5V supplies.
