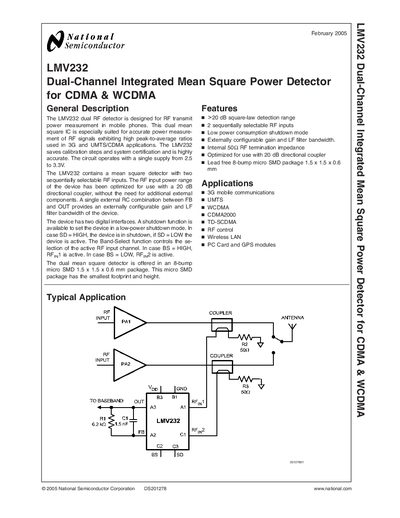

The LMV232 dual RF detector is designed for RF transmit power measurement in mobile phones. This dual mean square IC is especially suited for accurate power measurement of RF signals exhibiting high peak-to-average ratios used in 3G and UMTS/CDMA applications. The LMV232 saves calibration steps and system certification and is highly accurate. The circuit operates with a single supply from 2.5 to 3.3V. The LMV232 contains a mean square detector with two sequentially selectable RF inputs. The RF input power range of the device has been optimized for use with a 20 dB directional coupler, without the need for additional external components. A single external RC combination between FB and OUT provides an externally configurable gain and LF filter bandwidth of the device. The device has two digital interfaces. A shutdown function is available to set the device in a low-power shutdown mode. In case SD = HIGH, the device is in shutdown, if SD = LOW the device is active. The Band-Select function controls the selection of the active RF input channel. In case BS = HIGH, RFIN1 is active. In case BS = LOW, RFIN2 is active. The dual mean square detector is offered in an 8-bump micro SMD 1.5 x 1.5 x 0.6 mm package. This micro SMD package has the smallest footprint and height.
The LMV232 dual‑channel RF detector is designed for accurate transmit‑power measurement in mobile‑phone applications such as CDMA, WCDMA, and other 3G systems. It provides two sequentially selectable RF inputs, a shutdown mode for low‑power operation, and an externally configurable gain and low‑frequency filter.
The device is supplied in an 8‑bump micro‑SMD package (1.5 × 1.5 × 0.6 mm) and operates from a single 2.5 V‑3.3 V supply. Electrical specifications include a 50 MHz‑2 GHz RF frequency range, –20 dBm to +13 dBm input power range, and low shutdown current (5 pA).
| Supply Voltage | 2.5 V to 3.3 V |
|---|---|
| Number of RF Inputs | 2 (sequentially selectable) |
| Package | 8‑bump micro SMD 1.5 × 1.5 × 0.6 mm |
It operates from a single supply voltage between 2.5 V and 3.3 V.
It provides two sequentially selectable RF inputs.
It is offered in an 8‑bump micro SMD package measuring 1.5 × 1.5 × 0.6 mm.
