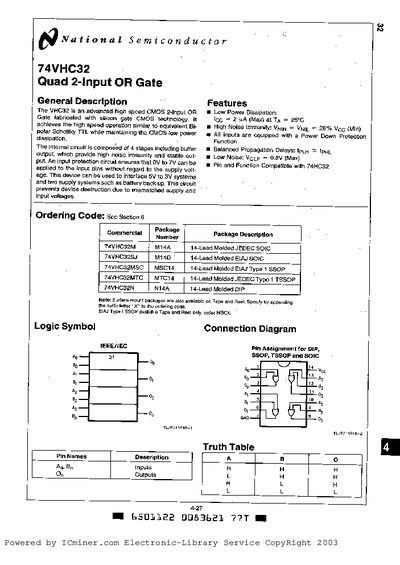

This document provides technical specifications for the 74VHC32, a high-speed CMOS quad 2-input OR gate. The device features low power dissipation and is pin-compatible with the 74HC32 series.
The datasheet includes absolute maximum ratings, DC electrical characteristics for various operating temperatures, AC propagation delay data, and ordering codes for multiple commercial packages including SOIC, SSOP, TSSOP, and DIP.
| Low Power Dissipation (Max) | 2 mW at Ta = 25°C |
|---|---|
| High Noise Immunity | Vii = Vii. = 28% Voo (Min) |
| Operating Temperature Range | -40°C to +85°C |
| Input Capacitance (Typical) | 4 pF to 10 pF |
Yes, it is pin and function compatible with the 74HC32.
The device can handle inputs from 0V to 7V regardless of supply voltage.
