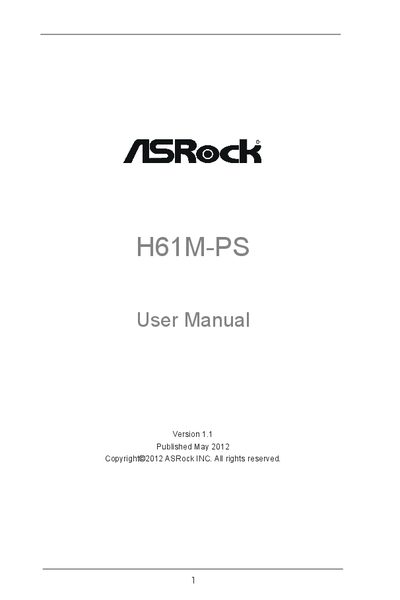

This document is the user manual for the H61M-PS motherboard published by ASRock INC. The manual provides specifications and information about the motherboard, as well as instructions and precautions for use.
This manual introduces the ASRock H61M-PS Micro ATX motherboard, covering its key features, package contents, and overall design. It serves as a guide for users to install, configure, and maintain the board safely.
The document includes detailed installation procedures, UEFI BIOS setup, supported operating systems, hardware specifications, and instructions for using the support CD utilities. It also provides safety warnings, warranty information, and contact details for technical support.
| Form Factor | Micro ATX (9.6" x 7.8") |
|---|---|
| Chipset | Intel® H64 |
| Memory Slots | 2x DDR3 DIMM, max 16 GB |
| Maximum Memory Capacity | 16 GB |
| LAN | Gigabit LAN (Atheros® AR8151) |
| Audio | 5.1 CH HD Audio (VIA® VT1705) |
| SATA Connectors | 4x SATA2 3.0 Gb/s |
The motherboard supports Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and Windows XP/XP 64‑bit.
Use the UEFI BIOS, set SATA mode to AHCI, boot the UEFI option for the installation media, and install Windows Vista 64‑bit or Windows 7 64‑bit.
The board can accommodate up to 16 GB of DDR3 memory.
It provides four SATA2 3.0 Gb/s connectors with NCQ, AHCI, and Hot‑Plug support.
