The ASRock H71M-DGS is a Micro ATX motherboard from ASRock that supports third generation and second generation Intel Core i7/i5/i3 processors, up to 16GB of memory, and features a PCI Express 3.0 x16 slot and a PCI Express x1 slot. It also supports Intel HD Graphics integrated graphics.

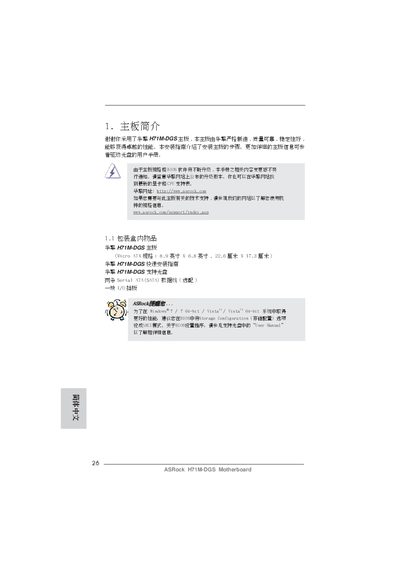

This manual introduces the ASRock H71M-DGS motherboard, a Micro‑ATX board that supports 3rd‑ and 2nd‑generation Intel Core i7/i5/i3 processors (LGA1155) and Intel H61 chipset. It details the board’s layout, supported memory, expansion slots, onboard graphics, audio, LAN, and I/O interfaces.
The guide also provides step‑by‑step installation instructions, BIOS configuration tips, CMOS clearing procedures, and safety warnings about over‑clocking and component handling. Additional information such as driver CD contents, software utilities, and environmental compliance is included. This manual is written in Chinese.
| Form factor | Micro ATX (8.9" x 6.8") |
|---|---|
| CPU support | 3rd‑ and 2nd‑gen Intel Core i7/i5/i3 (LGA1155) |
| Chipset | Intel H61 |
| SATA ports | 4 × SATA2 (3.0 Gb/s) with NCQ, AHCI, hot‑plug |
| Audio codec | Realtek ALC662 5.1‑channel HD audio |
The board supports 3rd‑ and 2nd‑generation Intel Core i7, i5 and i3 processors using the LGA1155 socket.
Power off the PC, unplug the power cord, wait 15 seconds, then short pins 2 and 3 of the CLRCMOS1 jumper for 5 seconds.
Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, XP and XP 64‑bit are supported.
