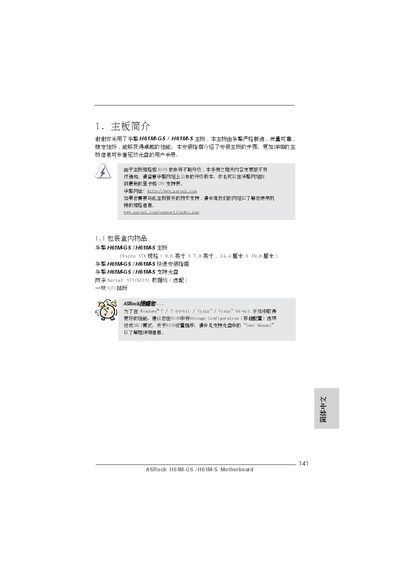

ASRock H61M-GS/H61M-S motherboard introduction, including motherboard specifications, CPU, memory, expansion slots, on-board graphics and other information.
This manual introduces the ASRock H61M‑GS and H61M‑S Micro‑ATX motherboards, covering hardware layout, supported CPUs, memory, expansion slots and onboard features. It also explains how to install the board, connect peripherals, and configure BIOS settings.
Safety warnings, default jumper settings, CMOS clearing instructions, and environmental compliance information are included to help users operate the board reliably and within regulatory limits. This manual is written in Chinese.
| Form factor | Micro ATX (9.6" x 7.8") |
|---|---|
| CPU support | 2nd/3rd‑gen Intel Core i7/i5/i3 (LGA1155) |
| Chipset | Intel H61 |
| Maximum memory | 16 GB |
| SATA ports | 4 × SATA2 (3.0 Gb/s) with NCQ, AHCI, hot‑plug |
| LAN | Atheros AR8151 (10/100/1000 Mb/s) on H61M‑GS |
| Audio codec | Realtek ALC662 (5.1‑channel HD audio) |
The board supports 2nd‑ and 3rd‑generation Intel Core i7, i5 and i3 processors using the LGA1155 socket.
The motherboard can accommodate up to 16 GB of DDR3 memory in dual‑channel configuration.
