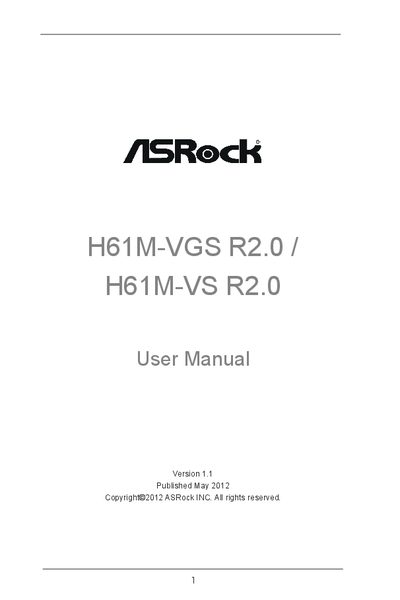

This document is the user manual for H61M-VGS R2.0 / H61M-VS R2.0 published by ASRock Inc. It describes the features and characteristics of the products.
This manual guides users through the hardware installation, BIOS setup, and software support for the ASRock H61M-VGS R2.0 and H61M-VS R2.0 micro‑ATX motherboards. It includes safety notices, package contents, and detailed specifications of the supported CPUs, memory, and I/O.
The document also covers UEFI Setup Utility navigation, operating‑system installation procedures (including large‑disk UEFI installation), and the utilities provided on the support CD. Troubleshooting tips, warranty information, and regulatory compliance statements are included as well.
| Form Factor | Micro ATX (8.9" x 6.8") |
|---|---|
| CPU Socket | LGA1155, supports 2nd/3rd Gen Intel Core i7/i5/i3 |
| Chipset | Intel H61 |
| Memory Type | DDR3, dual‑channel, up to 16 GB |
| Memory Slots | 2 x DDR3 DIMM |
| LAN (VGS) | Realtek RTL8111E, 10/100/1000 Mb/s |
| LAN (VS) | Realtek RTL8105E, 10/100 Mb/s |
| Audio Codec | VIA VT1705, 5.1 CH HD Audio |
| SATA Connectors | 4 x SATA2 3.0 Gb/s (NCQ, AHCI, Hot Plug) |
The motherboard supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and Windows XP/XP 64‑bit.
The board can accommodate up to 16 GB of DDR3 memory.
Yes, the motherboard includes Wake‑On‑LAN support.
