ASRock H61M-HVGS/H61M-HVS motherboard is a Micro ATX motherboard that supports third and second generation Intel® Core™ i7/i5/i3 processors, supports DDR3 1600/1333/1066 non-ECC, un-buffered memory, and supports up to 16GB system capacity.

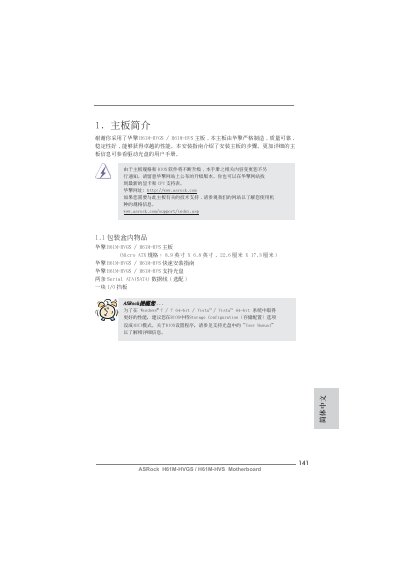

This manual introduces the ASRock H61M-HVGS/HVS Micro‑ATX motherboard, covering packaging contents, board layout, and key features such as CPU support, memory channels, and integrated graphics. It guides users through installation, connector wiring, and BIOS configuration for optimal performance.
Detailed sections describe the supported Intel® Core i7/i5/i3 processors, DDR3 memory limits, expansion slots, onboard audio, LAN, SATA ports, and safety warnings. The document also includes default jumper settings, CMOS clearing procedures, and environmental compliance information. This manual is written in Chinese.
| CPU Support | 3rd and 2nd generation Intel® Core i7/i5/i3 (LGA1155) |
|---|---|
| Chipset | Intel® H61 |
| Maximum Memory | 16 GB DDR3 (dual‑channel) |
| LAN Interface | Realtek RTL8111E Gigabit LAN (10/100/1000 Mb/s) |
| Audio Codec | VIA® VT1705 5.1‑channel HD audio |
| SATA Ports | 4 × SATA2 3.0 Gb/s (NCQ, AHCI, hot‑plug) |
| BIOS | 32 Mb AMI BIOS with UEFI GUI support |
The board supports 2nd‑ and 3rd‑generation Intel® Core i7, i5, and i3 CPUs using the LGA1155 socket.
The motherboard works with Microsoft® Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and Windows XP/XP 64‑bit.
