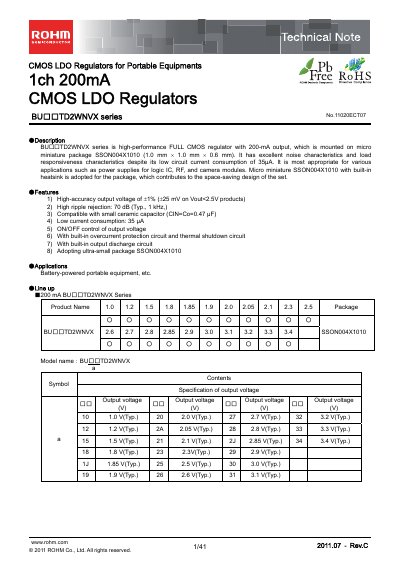

BU□□TD2WNVX series is a high-performance FULL CMOS regulator with 200mA output, which is mounted on micro miniature package SSON004X1010. Despite its low circuit current consumption of 35µA, it has excellent noise characteristics and load responsiveness characteristics. It is most appropriate for various applications such as power supplies for logic IC, RF, and camera modules.
The BUD OTD2WNVX series is a full‑CMOS LDO regulator offering 200 mA output in an ultra‑small SSON004X1010 package. It is aimed at battery‑powered portable equipment such as logic IC, RF, and camera modules.
The document provides electrical characteristics, absolute maximum ratings, recommended operating conditions, pin configuration, and example circuit diagrams. It also lists ordering information and packaging details for mass production.
| Maximum output current | 200 mA |
|---|---|
| Quiescent current consumption | 35 pA |
| Ripple rejection | 70 dB at 1 kHz |
| Output voltage accuracy | +1 % (±25 mV for Vout<2.5 V) |
| Over‑current protection limit | 220 – 400 mA |
The regulator can deliver up to 200 mA of output current.
Its quiescent current consumption is only 35 pA.
The device achieves a ripple rejection of 70 dB at 1 kHz.
