The BD357XFP/HFP series regulators feature a high 50V withstand-voltage and are suitable for use with onboard vehicle microcontrollers. They offer an output current of 500mA while limiting the quiescent current to 30μA (typical). These devices allow the selection of a ceramic capacitor at the output for stable operation. The output tolerance is within ±2% over the wide ambient temperature range of -40℃ to 125℃, and the short circuit protection is folded-type to minimize heat generation during malfunction. The BD357XFP/HFP series is developed to provide the most robust power-supply design under the harsh automotive environment. They provide ideal solutions for lowering current consumption and simplifying the use with battery direct-coupled systems.
The BD3571FP series are low‑dropout (LDO) regulators designed for automotive body‑control applications. They offer up to 500 mA output current, ultra‑low quiescent current (30 µA typ.) and a wide input voltage range up to 50 V. The devices support ceramic output capacitors, provide ±2 % voltage tolerance over –40 °C to +125 °C, and include built‑in over‑current and thermal‑shutdown protection.

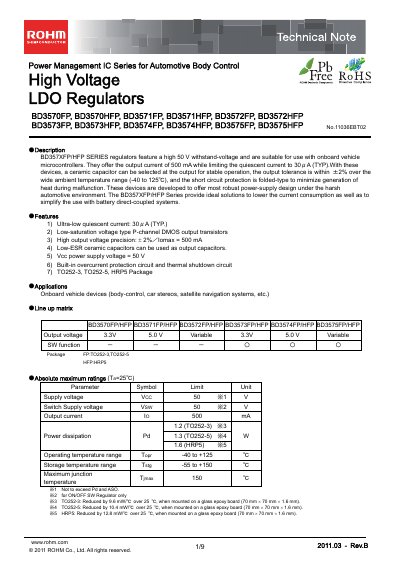

The document includes electrical characteristics, pin assignments, package options (TO252‑3, TO252‑5, HRP5S), ordering information and design guidelines such as heat‑mitigation calculations and peripheral pin settings. It is intended for designers integrating the regulator into vehicle electronics and other general‑purpose electronic equipment.
| Output current | 500 mA |
|---|---|
| Package options | TO252‑3, TO252‑5, HRP5S |
| Power dissipation (Pd) | 1.3 W (TO252‑5) |
The regulator can supply up to 500 mA of output current.
The series is offered in TO252‑3, TO252‑5 and HRP5S packages.
