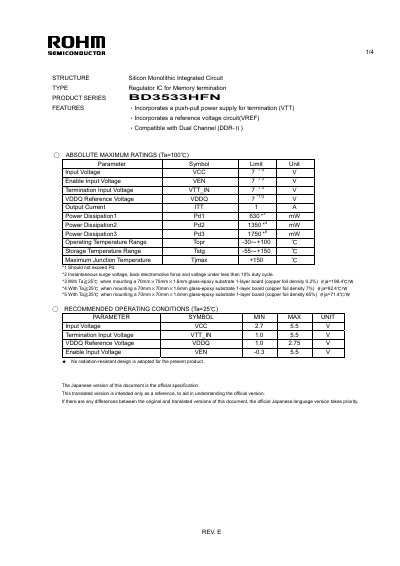

BD3533HFN is a push-pull termination power supply IC in the BD series, which integrates a push-pull termination power supply circuit and a reference voltage circuit, and is compatible with dual channels (DDR-Ⅱ).
The ROHM BDSS533HEN is a silicon monolithic regulator IC designed for memory termination. The document provides detailed electrical parameters, pin assignments, physical dimensions and recommended operating conditions.
Key sections include features, electrical characteristics, physical dimensions, notes for use, and an appendix with legal and safety information. The data sheet is intended for designers integrating the part into electronic equipment such as audio‑visual, office‑automation or communication devices.
| Input Voltage (VCC) Min | 2.7 V |
|---|---|
| Input Voltage (VCC) Max | 5.5 V |
| Output Current (ITT) | 1 A |
| Operating Temperature Range | -30~+100 °C |
| Enable Input Voltage (VEN) | 7 V |
The recommended operating temperature is 25 °C as stated in the recommended operating conditions table.
The absolute maximum input voltage rating is listed as VGG a (value not specified) with a limit of Vv, and the enable input voltage (VEN) is limited to 7 V.
