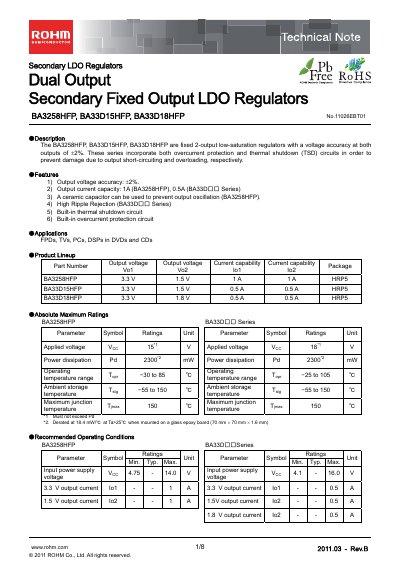

The BA3258HFP, BA33D15HFP, BA33D18HFP are fixed 2-output low-saturation regulators with a voltage accuracy at both outputs of ±2%. These series incorporate both overcurrent protection and thermal shutdown (TSD) circuits in order to prevent damage due to output short-circuiting and overloading, respectively. The features include output current capacity of 1A (BA3258HFP) and 0.5A (BA33D□□ Series), the ability to use a ceramic capacitor to prevent output oscillation (BA3258HFP), high ripple rejection (BA33D□□ Series). The applications include FPDs, TVs, PCs, DSPs in DVDs and CDs.
The ROHM BA3258HFP, BA33D15HFP and BA33D18HFP are fixed‑output, dual‑channel low‑saturation LDO regulators. They provide two regulated voltages with ±2 % accuracy and include built‑in over‑current protection and thermal‑shutdown circuits.
The document contains electrical characteristics, recommended operating conditions, pin‑out diagrams, thermal‑design guidelines and ordering information for the HRP5 (tape‑and‑reel) package.
| Output voltage Vo1 | 3.3 V |
|---|---|
| Output current capacity | 1 A (BA3258HFP) / 0.5 A (BA33D series) |
| Power dissipation (Pd) | 2.3 W (BA3258HFP) / 5.5 W (BA33D series, 2‑layer board) |
| Operating temperature range | −30 °C to 85 °C (BA3258HFP) / −25 °C to 105 °C (BA33D series) |
| Input voltage VCC | 4.75 V – 14 V (BA3258HFP) / 4.1 V – 16 V (BA33D series) |
Both outputs are specified to be accurate within ±2 %.
The devices include built‑in over‑current protection and a thermal‑shutdown (TSD) circuit.
The parts are supplied in an HRP5 (embossed tape‑and‑reel) format.
