This product is a single motor reversible motor driver that can output 1.0A. The output mode can be set to four modes: normal, reverse, stop (idling), and braking according to the logic input (2 inputs).

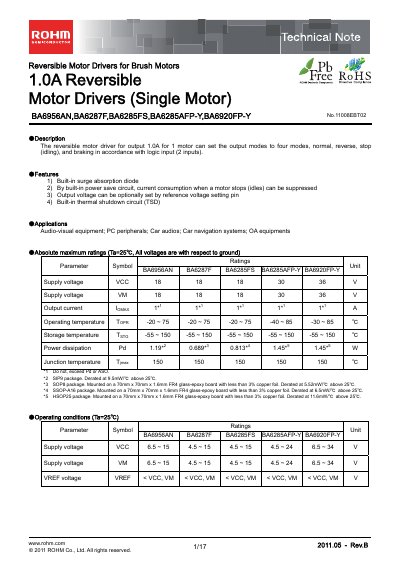

This technical note describes the ROHM BA6956AN reversible motor driver, a 1 A driver for brush motors that supports normal, reverse, stop (idle) and braking modes via two logic inputs. It is intended for audio‑visual equipment, PC peripherals, car audio and navigation systems, and office‑automation devices.
Key features include a built‑in surge‑absorption diode, power‑save circuit, optional reference‑voltage setting pin, and thermal shutdown. The document lists absolute maximum ratings, operating conditions, electrical characteristics, pin functions, and mechanical data such as package dimensions and tape‑and‑reel information.
Pin 1 (VREF) is the reference voltage setting pin.
