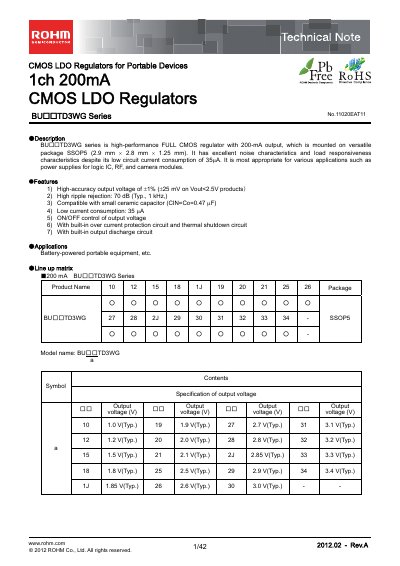

BUTD3WG series is a high-performance FULL CMOS regulator with an output of 200 mA, which is mounted on a versatile SSOP5 (2.9 mm 2.8 mm 1.25 mm) package. It has excellent noise characteristics and load responsiveness characteristics despite its low circuit current consumption of 35A. It is most appropriate for various applications such as power supplies for logic IC, RF, and camera modules.
The BUDOTD3WG series is a full‑CMOS LDO regulator offering 200 mA output current in a compact SSOP5 package (2.9 mm × 2.8 mm × 1.25 mm). It provides high‑accuracy output voltage (±1 %), low quiescent current (35 µA), and strong ripple rejection (70 dB).
The document includes absolute maximum ratings, recommended operating conditions, electrical characteristics for each output voltage option, pin configuration, recommended external capacitors, and ordering information. It also contains safety notices and export compliance guidance.
| Typical output voltage | 1.0 V |
|---|---|
| Maximum output current | 200 mA |
| Quiescent current consumption | 35 µA |
| Ripple rejection | 70 dB (typ., 1 kHz) |
| Package | SSOP5 (2.9 mm × 2.8 mm × 1.25 mm) |
A ceramic capacitor of 0.22 µF to 0.47 µF is recommended for the input.
Yes, it has a built‑in over‑current protection circuit and thermal shutdown circuit.
The device operates from –40 °C to +85 °C.
