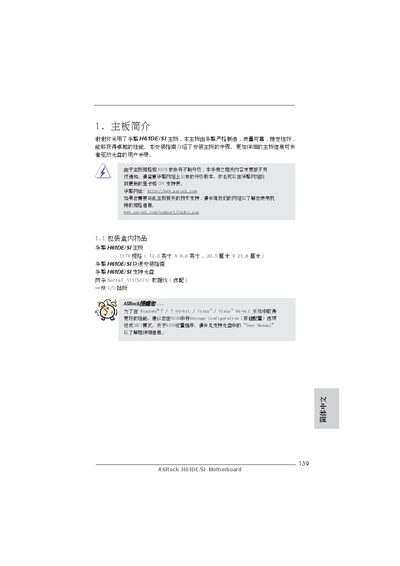

ASRock H61DE/SI Motherboard quick installation guide, introduces the steps of installing the motherboard.
This guide introduces the ASRock H61DE/SI motherboard, its ATX dimensions (12.0" x 8.6"), and the supported Intel 2nd/3rd‑gen Core i7/i5/i3 CPUs (LGA1155). It covers the chipset (Intel H61), power design (4+1 phases), memory support (4 DDR3 DIMM slots, up to 16 GB DDR3‑1600/1333/1066 non‑ECC) and expansion slots.
Detailed sections describe the rear panel connectors, BIOS features (AMI UEFI, ACPI 1.1, Instant Flash), onboard audio (Realtek ALC887), LAN (Atheros AR8151 Gigabit), SATA ports (4 SATA2 3 Gb/s), USB ports (6 rear USB 2.0 + 2 internal), and jumper settings. The manual also provides safety warnings, firmware update instructions, and environmental compliance information. This manual is written in Chinese.
| Form factor | ATX (12.0" x 8.6") |
|---|---|
| CPU socket | LGA1155 |
| Power phases | 4 + 1 |
| Memory slots | 4 DDR3 DIMM slots |
| Audio codec | Realtek ALC887 |
| LAN controller | Atheros AR8151 Gigabit |
| SATA ports | 4 x SATA2 (3 Gb/s) |
The board provides four SATA2 ports capable of 3 Gb/s transfer rates.
