ASRock H61DEL Motherboard is based on ATX form factor, 12.0 inch x 6.8 inch in size, supports the third and second generation Intel Core i7/i5/i3 processors, and has an integrated Intel HD Graphics graphics card. It supports DDR3 1600/1333/1066 memory and has 1 PCI Express 3.0 x16 slot and 5 PCI Express x1 slots.
This guide introduces the ASRock H61DEL ATX motherboard, its key features, and how to install it in a PC. It includes a checklist of items in the box, safety notices, and recommended BIOS settings for optimal performance.

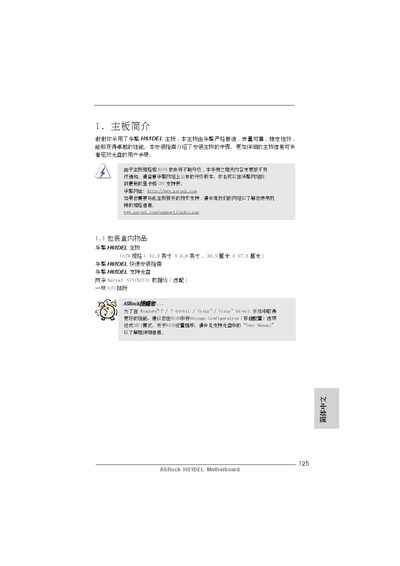

The document covers detailed specifications such as CPU and memory support, expansion slots, I/O interfaces, audio and networking features, as well as BIOS navigation, jumper settings, and troubleshooting tips like clearing CMOS and handling overheating warnings. This manual is written in Chinese.
| Form factor | ATX (12.0 in x 6.8 in) |
|---|---|
| CPU support | 3rd/2nd Gen Intel Core i7/i5/i3 LGA1155 |
| Chipset | Intel H61 |
| SATA ports | 4 SATA2 (3.0 Gb/s) ports |
| Audio codec | VIA VT1705 5.1‑channel HD audio |
| USB ports | 6 rear‑panel USB 2.0 ports |
| BIOS | 32 Mb AMI UEFI BIOS |
The H61DEL motherboard supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and Windows XP/XP 64‑bit.
The board can accommodate up to 16 GB of DDR3 memory.
There are four SATA2 ports providing up to 3.0 Gb/s transfer speed.
