ASRock H61M-PS2 Motherboard is a Micro ATX specification motherboard that supports third generation and second generation Intel ® Core TM i7 / i5 / i3 processors, supports Intel ® Turbo Boost 2.0 technology, supports K- series unlocked CPUs, supports Hyper-Threading hyper-threading technology. The motherboard is equipped with 2 DDR3 DIMM slots, supports DDR3 1600/1333/1066 non-ECC, un-buffered memory, supports a maximum of 16GB system capacity. The motherboard also features 1 x PCI Express 3.0 x16 slot, 1 x PCI Express x1 slot, 1 x PCI slot, supports Intel ® HD Graphics integrated visual features and VGA output.

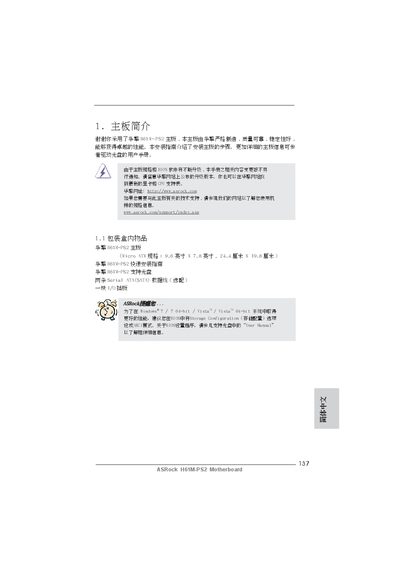

This manual covers the quick installation guide for the ASRock H61M-PS2 Micro‑ATX motherboard, including package contents, connector pin‑outs, and detailed hardware specifications. It also explains BIOS configuration, supported CPUs, memory types, and built‑in features such as audio, LAN, and USB ports.
Additional sections describe safety warnings, warranty information, and advanced utilities like the ASRock Extreme Tuning Utility, Instant Flash BIOS update, and XFast USB/LAN/RAM features. This manual is written in Chinese.
| Form factor | Micro ATX (9.6" x 7.8") |
|---|---|
| CPU socket | LGA1155 |
| Maximum memory | 16 GB DDR3 |
| PCI Express slots | 1 × PCIe 3.0 x16, 1 × PCIe x1 |
| SATA ports | 4 × SATA2 (3.0 Gb/s) |
| LAN | Atheros AR8152, 10/100 Mb/s, supports Wake‑On‑LAN and PXE |
The motherboard provides four SATA2 ports with a 3.0 Gb/s data rate.
It supports up to 16 GB of DDR3 memory.
The board uses an LGA1155 socket.
