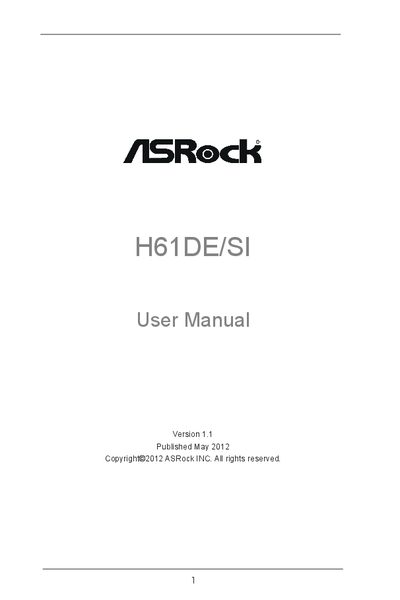

This document is the user manual for the H61DE/SI motherboard released by ASRock INC. in May 2012. It includes copyright notice, product information, disclaimer, etc.
This manual introduces the ASRock H61DE/SI ATX motherboard, describing its features, specifications, and the layout of components. It includes safety notices, FCC compliance, and warranty information.
The document guides users through hardware installation, BIOS/UEFI setup, operating‑system installation, and the use of the Support CD utilities. Detailed specifications for CPU support, memory, expansion slots, graphics, audio, LAN, and connectors are also provided.
| Form Factor | ATX (12.0" x 8.6") |
|---|---|
| CPU Socket | LGA1155 (2nd/3rd Gen Intel Core i7/i5/i3) |
| Chipset | Intel® H61 |
| SATA Connectors | 4 x SATA2 3.0 Gb/s (NCQ, AHCI, Hot Plug) |
| LAN | Gigabit Ethernet (Atheros AR8151) |
| Audio Codec | Realtek ALC887 (7.1‑channel HD Audio) |
The board supports Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and XP/XP 64‑bit.
Insert the CD, then run ASSETUP.EXE from the BIN folder to open the Drivers menu and install needed drivers.
Yes, using the UEFI BIOS you can install Windows 7 64‑bit or Vista 64‑bit on drives larger than 2 TB by enabling AHCI mode and booting in UEFI mode.
