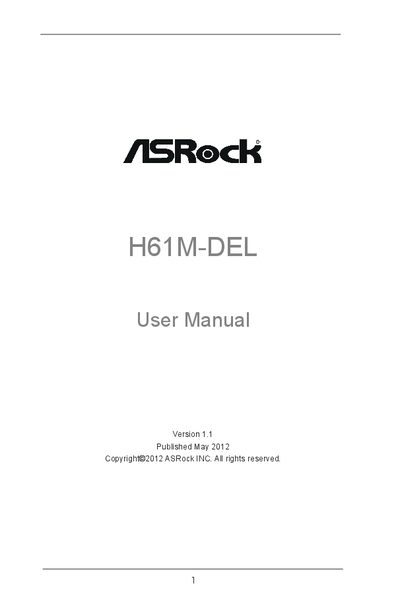

This document is the user manual for ASRock H61M-DEL motherboard, which describes the features and characteristics of the motherboard.
This manual introduces the ASRock H61M-DEL ATX motherboard, detailing its features, specifications, and the steps required to install and configure the board. It also outlines warranty, regulatory, and safety information.
The document covers package contents, hardware installation, UEFI BIOS configuration, supported operating systems, and the contents of the support CD, including drivers and utilities. Additional sections describe hardware monitoring, unique ASRock features, and troubleshooting guidance.
| Form Factor | ATX (12.0 in x 6.8 in) |
|---|---|
| CPU Socket | LGA1155 |
| Supported CPUs | Intel 2nd/3rd Gen Core i7/i5/i3 |
| Memory Slots | 2 DDR3 DIMM slots, up to 16 GB |
| Maximum Memory Capacity | 16 GB |
| SATA Connectors | 4 × SATA2 3.0 Gb/s connectors |
| LAN | Realtek RTL8111E Gigabit Ethernet |
| Audio Codec | VIA VT1705 5.1‑channel HD Audio |
| Expansion Slots | 1 × PCIe 3.0 x16, 5 × PCIe 2.0 x1 |
It supports Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and Windows XP/XP 64‑bit.
The board provides four SATA2 3.0 Gb/s connectors.
The maximum supported system memory is 16 GB.
Press F2 or Delete at POST, then go to Advanced > Storage Configuration and set SATA Mode to AHCI.
