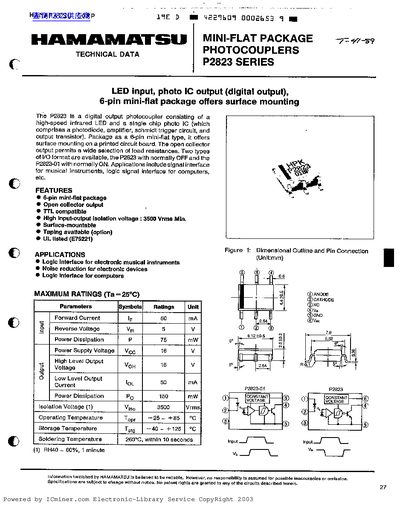

The P2823 series is a digital‑output photocoupler that combines a high‑speed infrared LED with a single‑chip photo IC (photodiode, amplifier, Schmitt trigger, and output transistor) in a 6‑pin mini‑flat surface‑mount package. It offers an open‑collector output, TTL compatibility, and optional taping for automated assembly.
Key specifications include a minimum isolation voltage of 3500 Vrms, typical forward voltage of 1.4 V, forward current up to 50 mA, power dissipation of 75 mW (typical), and operating temperature range from –25 °C to +85 °C. The device is UL listed and suitable for logic interfaces in musical instruments, computers, and noise‑reduction applications.
| Isolation Voltage | 3500 Vrms (minimum) |
|---|---|
| Power Dissipation (typical) | 75 mW |
| Operating Temperature | -25 °C to +85 °C |
| Storage Temperature | -40 °C to +125 °C |
The P2823 series provides a minimum isolation voltage of 3500 Vrms.
It uses a 6‑pin mini‑flat surface‑mount package.
It operates from –25 °C up to +85 °C.
