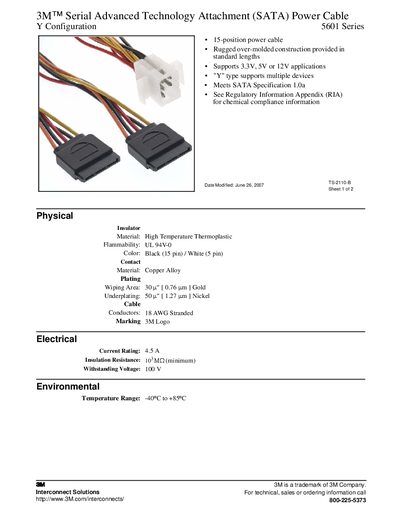

3M™ Serial Advanced Technology Attachment (SATA) Power Cable Y Configuration 5601 Series is a 15-position power cable produced by 3M Company. It supports 3.3V, 5V or 12V applications and meets SATA Specification 1.0a standard.
The 3M 5601 Series Serial Advanced Technology Attachment (SATA) Power Cable in a Y configuration is designed for multiple device connections. It features a rugged over‑molded construction, 15‑position power connector, and is available in four standard lengths.
Key specifications include a 45 A current rating, 100 V withstanding voltage, -40 °C to +85 °C operating temperature range, and compliance with SATA Spec 1.0a and RoHS directives. The cable uses high‑temperature thermoplastic insulation, copper‑alloy conductors, and gold/nickel plating for reliable performance.
| Insulation Resistance | 10 MΩ (minimum) |
|---|---|
| Temperature Range | -40°C to +85°C |
| Cable Conductors | 18 AWG Stranded |
| Insulator Material | High Temperature Thermoplastic |
| Flammability Rating | UL 94V-0 |
| Contact Material | Copper Alloy |
| Plating | 30 µm Gold, 50 µm Nickel |
It supports 3.3 V, 5 V, and 12 V applications.
Yes, the product is RoHS compliant according to EU Directive 2002/95/EC.
