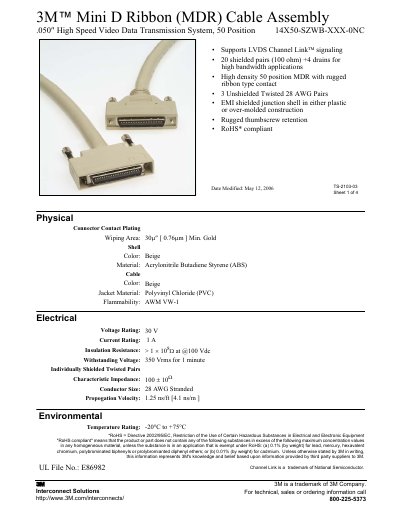

3M™ Mini D Ribbon (MDR) Cable Assembly .050″ High Speed Video Data Transmission System, 50 Position 14X50-SZWB-XXX-0NC is a connector product of 3M, with rated voltage of 30V, rated current of 1A, characteristic impedance of 100±10Ω, and conductor size of 28 AWG.
The Mini D Ribbon (MDR) cable assembly is a high‑density 50‑position ribbon‑type connector designed for LVDS Channel Link™ signaling in high‑speed video data transmission systems. It features 20 individually shielded twisted pairs (100 Ω) plus four drain lines and three unshielded 28 AWG pairs, providing robust EMI protection and rugged thumbscrew retention.
Key specifications include a voltage rating of 30 V, current rating of 1 A, insulation resistance greater than 1 × 10⁸ Ω at 100 VDC, and a temperature operating range of –20 °C to +75 °C. The cable complies with RoHS directives and meets AWM VW‑1 flammability standards. Ordering options allow lengths from 1 m to 5 m, and detailed pinout tables define signal assignments for each position.
| Connector material | Acrylonitrile Butadiene Styrene (ABS) |
|---|---|
| Voltage rating | 30 V |
| Current rating | 1 A |
| Characteristic impedance | 100 Ω ± 10 Ω |
| Operating temperature range | -20 °C to +75 °C |
The cable is rated for 30 V.
It contains 20 shielded twisted pairs plus four drain lines.
The cable can be used from –20 °C up to +75 °C.
Yes, the product is RoHS compliant.
