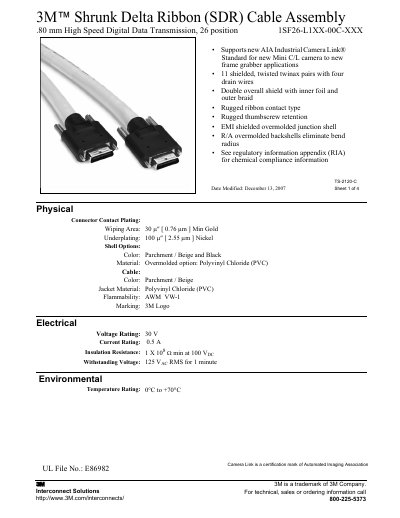

The product is 3M 1SF26-L1XX-00C-XXX connector, supports new AIA Industrial Camera Link® Standard for new Mini C/L camera to new frame grabber applications
The Shrunk Delta Ribbon (SDR) Cable Assembly provides a .80 mm high‑speed digital data transmission solution with 26 positions, double overall shielding, and rugged ribbon contacts. It supports the AIA Industrial Camera Link® standard and is available in parchment/beige or black PVC overmolded versions.
Ordering information, regulatory compliance (RoHS), and a one‑year limited warranty are included. The product is manufactured by 3M and complies with UL and European RoHS directives.
| Voltage Rating | 30 V |
|---|---|
| Current Rating | 0.5 A |
| Insulation Resistance | 1 × 10^8 Ω min at 100 VDC |
| Withstanding Voltage | 125 VAC RMS for 1 minute |
| Temperature Rating | 0°C to +70°C |
| Cable Material | Polyvinyl Chloride (PVC) |
| Flammability | AWM VW-1 |
| Connector Contact Plating | 30 μ″ (0.76 μm) Min Gold |
| Number of Positions | 26 |
| Cable Width | .80 mm |
| Shielding | Double overall shield with inner foil and outer braid |
| Color Options | Parchment / Beige and Black |
The cable assembly is rated for 30 V.
Yes, the product is RoHS compliant according to the regulatory appendix.
It can operate from 0 °C up to +70 °C.
