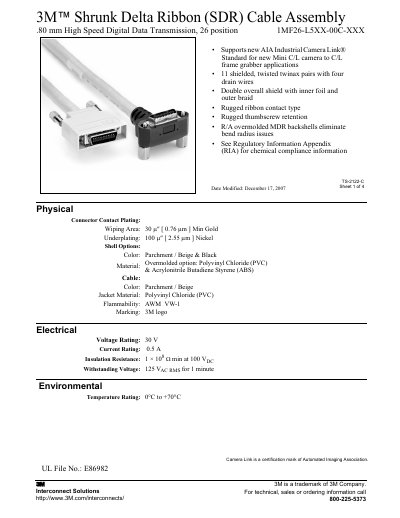

The 3M™ Shrunk Delta Ribbon (SDR) Cable Assembly .80 mm is a high-speed digital data transmission cable assembly that supports the new AIA Industrial Camera Link® standard for new Mini C/L camera to C/L frame grabber applications. It features 11 shielded, twisted twinax pairs with four drain wires, double overall shield with inner foil and outer braid. The product utilizes rugged ribbon contact type, rugged thumbscrew retention, and R/A overmolded MDR backshells to eliminate bend radius issues.
The Shrunk Delta Ribbon (SDR) cable assembly provides high‑speed digital data transmission for Mini C/L camera to C/L frame‑grabber applications. It features 11 shielded twisted‑pair conductors, four drain wires, a double overall shield, rugged thumbscrew retention, and over‑molded backshells to eliminate bend‑radius issues.
Technical specifications include a 30 V voltage rating, 0.5 A current rating, 1 × 10⁸ Ω insulation resistance at 100 VDC, and a temperature range of 0 °C to +70 °C. The product is RoHS compliant and comes with a one‑year limited warranty.
| Voltage Rating | 30 V |
|---|---|
| Current Rating | 0.5 A |
| Insulation Resistance | 1 × 10⁸ Ω min at 100 VDC |
| Withstanding Voltage | 125 VAC RMS for 1 minute |
| Temperature Rating | 0 °C to +70 °C |
| Cable Length Tolerance (<2 m) | +50 mm / -0 mm |
| Cable Length Tolerance (≥2 m) | +3 % / -0 % of cable length |
| Connector Wiping Area | 30 μ″ (0.76 μm) |
| Gold Underplating | 100 μ″ (2.55 μm) |
The cable is rated for 30 V.
Yes, the product is RoHS compliant according to EU Directive 2005/95/EC.
For lengths under 2 m the tolerance is +50 mm / –0 mm; for 2 m or more it is +3 % / –0 % of the length.
