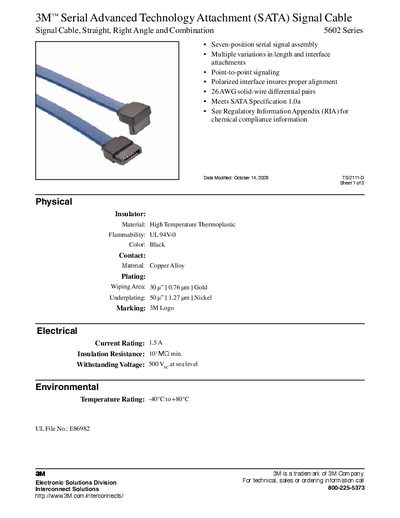

This document is the technical specification of 3M 5602 series SATA signal cables, including information such as physical characteristics, electrical characteristics, environmental temperature, etc.
The 5602 Series SATA signal cable from 3M is offered in straight, right‑angle, and combination configurations with multiple lengths. It features a polarized interface for proper alignment and 26 AWG solid‑wire differential pairs for point‑to‑point signaling.
Technical specifications include a 5 A current rating, 10 MΩ minimum insulation resistance, 500 V withstanding voltage, and an operating temperature range of –40 °C to +80 °C. The cable complies with SATA Specification 1.0a and EU RoHS directives.
| Wire gauge | 26 AWG solid-wire differential pairs |
|---|---|
| Withstanding Voltage | 500 V |
| Temperature Rating | -40 °C to +80 °C |
It can operate from –40 °C up to +80 °C.
Yes, the product is RoHS compliant according to EU Directive 2002/95/EC.
