15/16" (24mm) Diameter 1/2 Watt Composition Variable Resistors are available in a variety of mounting styles, including bushing, twist tab, bend tab, snap-in PC bracket, solder lug or PC terminals. They have a wide resistance range, molded / metal shaft & bushing, pull-push, push-push and rotary power switches, shaft and bushing waterseal available, rear extended shaft available, single, tandem, or concentric constructions, special vernier adjust (multiturn) construction available for fine adjustment, and long life construction available.

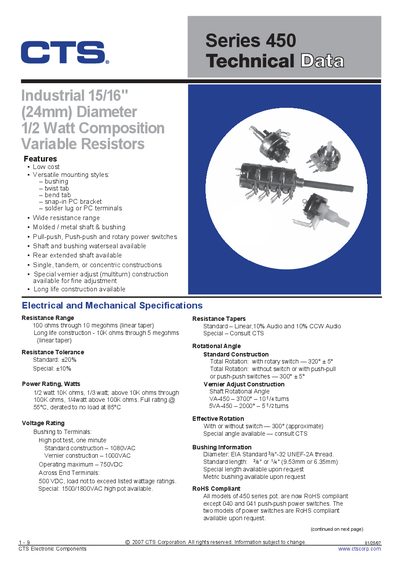

The CTS Series 450 variable resistors offer a low‑cost, versatile mounting options such as bushing, twist tab, snap‑in PC bracket, and solder lug terminals. They are available in standard, tandem, concentric, and special vernier‑adjust constructions, with options for long‑life and water‑sealed shafts.
Key specifications include a resistance range of 100 Ω to 10 MΩ, power ratings up to 1/2 W, voltage ratings up to 1080 VAC (750 VDC operating maximum), and various rotational angles. The series is RoHS compliant (except two push‑push switch models) and provides multiple mounting and shaft options to suit diverse applications.
| Resistance Range | 100 Ω to 10 MΩ (linear taper) |
|---|---|
| Resistance Tolerance (Standard) | +20% |
| Power Rating | 1/2 W @10 kΩ, 1/3 W; up to 1/4 W @100 kΩ |
| Voltage Rating (Standard) | 1080 VAC |
| Operating Maximum Voltage (DC) | 750 VDC |
| Rotational Angle (Standard) | 320° + 5° |
| RoHS Compliance | All models RoHS compliant except 040 and 0471 push‑push switches |
The Series 450 covers a resistance range from 100 Ω up to 10 MΩ with a linear taper.
The standard construction is rated for up to 1080 VAC, with an operating maximum of 750 VDC.
Yes, all models are RoHS compliant except the 040 and 0471 push‑push power switches.
It provides a total rotation of 320° plus a 5° over‑travel.
