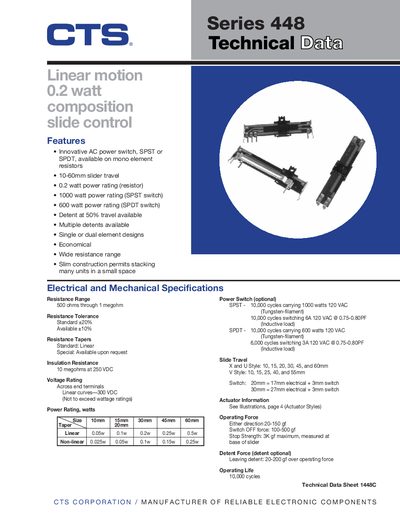

This document introduces CTSC's series 448 0.2 watt linear motion composition slide controller features, including innovative AC power switches, 10-60mm slider travel, 0.2 watt power rating (resistor), 1000 watt power rating (SPST switch), 600 watt power rating (SPDT switch), 50% travel limit switch, multiple limit switches, single resistor or double resistor design, compact, economical, wide resistance range, and thin structure that allows stacking multiple units in a small space.
This document provides technical specifications for the CTS Series 448, an innovative AC power switch available in single (SPST) or double-pole (SPDT) configurations. The series features a wide resistance range from 500 ohms to 1 megohm and is designed with slim construction to permit stacking many units in a small space.
| Power Rating (SPST Switch) | 1000 watt power rating |
|---|---|
| Power Rating (SPDT Switch) | 600 watt power rating |
| Resistance Range | 500 ohms through 1 megohm |
| Operating Life | 10,000 cycles |
| Insulation Resistance | 10 megohms at 250 VDC |
The SPST switch has a power rating of 1000 watts.
The switch supports an operating life of 10,000 cycles.
The maximum stop strength for a detent is 3K gf.
