This document mainly introduces the characteristics of CTS series 110 resistors, including resistance range, resistance tolerance, power rating, voltage rating, resistance taper, fixed resistor, rotation angle, resistor adjustment method and mounting method.

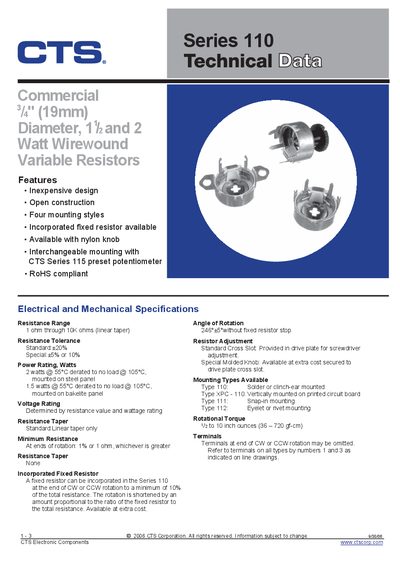

The CTS Series 110 potentiometer offers an inexpensive, open‑construction design with four mounting styles and optional fixed resistor integration. It is RoHS compliant and available with a nylon knob.
Key electrical specifications include a resistance range of 1 Ω to 10 kΩ (linear taper), a power rating of up to 2 W at 55 °C (derated to no‑load at 105 °C), and a rotational torque of 142 to 10 in‑oz (36 – 720 gf·cm). Various mounting options such as solder/clinch‑ear, vertical PCB (XPC‑110), snap‑in, and eyelet/rivet are provided, with detailed terminal layouts and dimensions.
| Resistance Range | 1 Ω through 10 kΩ (linear taper) |
|---|---|
| Angle of Rotation | 246° + 5° without fixed resistor stop |
| Power Rating | 2 W @ 55 °C derated to no‑load @ 105 °C |
| Rotational Torque | 142 to 10 in‑oz (36 – 720 gf·cm) |
| Mounting Types | Solder/Clinch‑Ear, XPC‑110 PCB, Snap‑In, Eyelet/Rivet |
It ranges from 1 Ω to 10 kΩ with a linear taper.
Options include solder or clinch‑ear mounting, vertical PCB (XPC‑110), snap‑in, and eyelet or rivet mounting.
The potentiometer is rated for 2 W at 55 °C, derated to no‑load at 105 °C.
