Product introduction: resistor;Brand: cts;Model: 026;Product features: 5 watt power rating, superior temperature and environmental change resistance stability, can be used with terminal seat or winding terminal, can be equipped with pull-push and rotary power switches, excellent linearity performance.
The CTS Series 026 is a family of resistive and switch components offering dust‑proof construction, water‑splash protection, and RoHS compliance. Features include a 5‑watt power rating, superior temperature stability, and various mounting options such as bushing or twist‑tab.

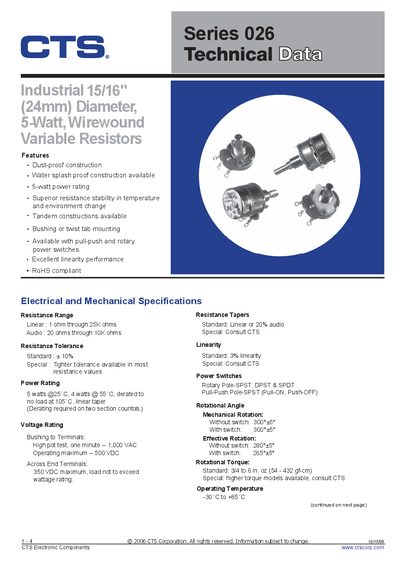

The sheet lists electrical specifications like resistance ranges, tolerance, power ratings, and operating temperature, as well as mechanical details for shaft sizes, bushing dimensions, and rotation angles. Custom shaft and mounting options are available, and a long‑life construction can provide up to 100 K cycles.
| Power Rating | 5 W @25 °C, 4 W @55 °C |
|---|---|
| Linear Resistance Range | 1 Ω through 25 kΩ |
| Audio Resistance Range | 20 Ω through 10 kΩ |
| Operating Temperature | -30 °C to +85 °C |
| Standard Shaft Diameter | 0.438 in (11.1 mm) |
| Bushing Mount Diameter | 3/8‑32 UNEF‑2A thread |
| Mechanical Rotation (no switch) | 300° 45° |
| Long Life Construction Life | 50 K–100 K cycles |
The Series 026 switches are rated at 5 W at 25 °C and 4 W at 55 °C.
Linear taper resistors range from 1 Ω to 25 kΩ, while audio taper resistors range from 20 Ω to 10 kΩ.
The device operates from –30 °C up to +85 °C.
Mounting options include bushing mounting, twist‑tab mounting, and various lug configurations.
