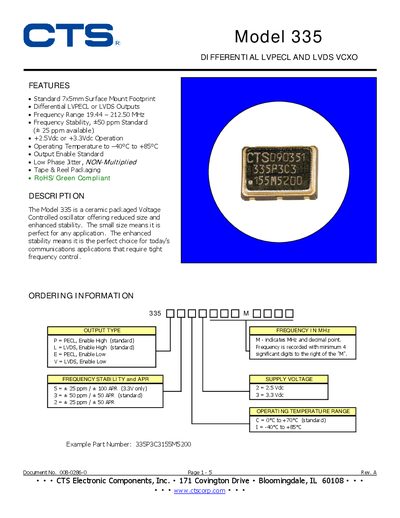

The Model 335 is a ceramic packaged Voltage Controlled oscillator offering reduced size and enhanced stability. It is perfect for any application that requires tight frequency control.
The CTS Model 335 is a compact, ceramic packaged Voltage Controlled Oscillator designed for communications applications requiring tight frequency control. It features reduced size with enhanced stability and offers a wide frequency range from 19.44 MHz to 212.50 MHz.
The device supports both Differential LVPECL and LVDS output types and operates on +2.5Vdc or +3.3Vdc supplies. Key specifications include a standard frequency stability of ±50 ppm (with ±25 ppm available), an operating temperature range of -40°C to +85°C, and low phase jitter suitable for high-speed applications.
| Frequency Range | 19.44 — 212.50 MHz |
|---|---|
| Frequency Stability | ±50 ppm Standard (±25 ppm available) |
| Operating Voltage | +2.5Vdc or +3.3Vdc |
| Operating Temperature Range | -40°C to +85°C |
| Package Footprint | 7x5mm Surface Mount |
| Output Types | Differential LVPECL or LVDS |
The Model 335 offers Differential LVPECL or LVDS outputs.
Yes, the device is RoHS/ Green Compliant.
The standard frequency stability is ±50 ppm, with ±25 ppm available as an option.
