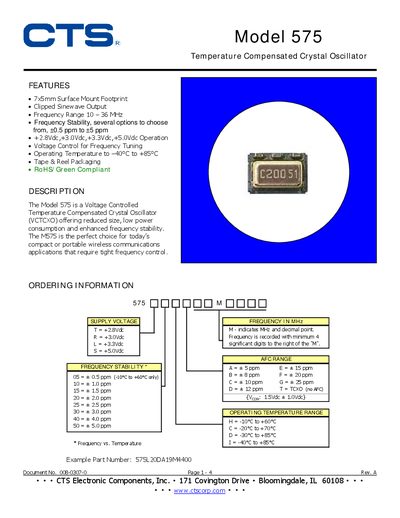

The document describes the features and characteristics of CTS Electronic Components, Inc.'s Model 575 Temperature Compensated Crystal Oscillator, including size, output waveform, frequency range, frequency stability, operating voltage, operating temperature range, etc.
The CTS Model 575 is a Voltage Controlled Temperature Compensated Crystal Oscillator (VCTCXO) designed for compact wireless communications applications. It features a small 7x5mm surface mount footprint and offers reduced size with low power consumption.
This document provides detailed electrical characteristics, mechanical specifications, ordering information, and environmental ratings. Key features include frequency stability options ranging from +0.5 ppm to +25 ppm and operation across various supply voltages including 2.8Vdc, 3.0Vdc, 3.3Vdc, and 5.0Vdc.
| Frequency Range | 10 — 36 MHz |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Supply Voltage Options | +2.8Vdc, +3.0Vdc, +3.3Vdc, +5.0Vdc |
| Package Size | 7x5mm Surface Mount Footprint |
| Output Waveform | Clipped Sinewave |
The model offers several options with frequency stability ranging from +0.5 ppm to +25 ppm.
The supply current is a maximum of 15 mA for frequencies in the 10.00 MHz to 15.00 MHz range.
The suggested reflow profile specifies a maximum temperature of 260°C for 10 seconds.
