15/16" (24mm) Diameter 1/2 Watt Composition Variable Resistors are low cost, have versatile mounting styles, a wide resistance range, can be adjusted by power switches, and have waterseals available.

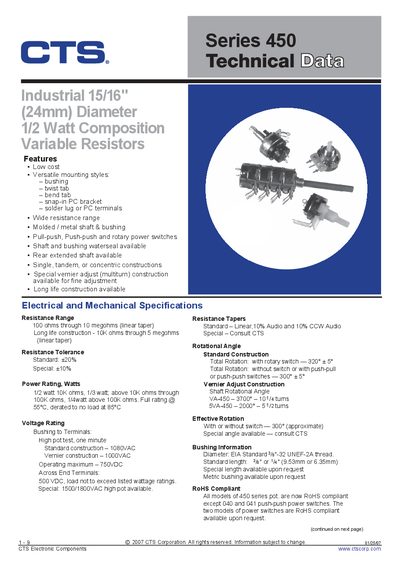

This document provides technical data for the CTS Series 450 line of variable resistors (potentiometers) and associated power switches. It covers features such as low cost, versatile mounting styles including bushing and twist tab, and a wide resistance range from 100 ohms to 10 megohms.
| Resistance Range | 100 ohms through 10 megohms (linear taper) |
|---|---|
| Power Rating | 1/2 watt at 10K ohms, derated above |
| Voltage Rating (Bushing to Terminals) | 750VDC operating maximum |
| Resistance Tolerance (Standard) | +20% |
| Total Rotation (Standard Construction) | 320° with rotary switch |
Yes, all models of the 450 series are now RoHS compliant.
Available styles include bushing, twist tab, bend tab, snap-in PC bracket, and solder lug or PC terminals.
