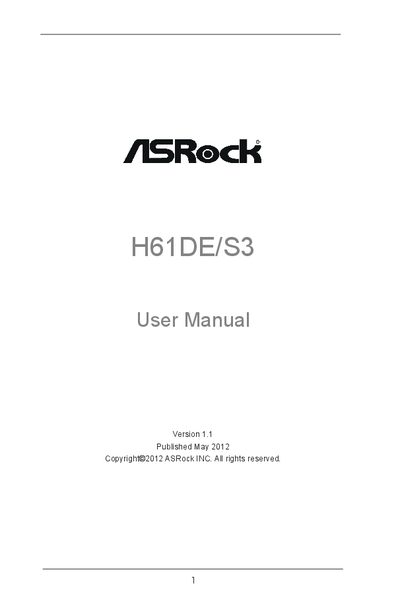

ASRock H61DE/S3 Motherboard User Manual

About this manual

This manual introduces the ASRock H61DE/S3 ATX motherboard and guides users through hardware installation, BIOS/UEFI setup, and software support. It includes safety notices, warranty information, and regulatory compliance details.

Key sections cover package contents, detailed specifications, step‑by‑step installation of CPU, memory, and storage, BIOS configuration options, and instructions for using the support CD to install drivers and utilities. The document also explains how to install Windows on large‑capacity drives using UEFI.

What's inside

• Introduction
• Installation
• UEFI Setup Utility
• Software Support
• Specifications
• BIOS Features
• Support CD

Specifications

Frequently asked questions

What operating systems are supported by the ASRock H61DE/S3 motherboard?

It supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and Windows XP/XP 64‑bit.

How can I install Windows on a hard drive larger than 2 TB with this motherboard?

Use the UEFI BIOS, set SATA mode to AHCI, boot the UEFI installation option, and install Windows Vista 64‑bit or Windows 7 64‑bit, which will format the drive with GPT.

Where can I find drivers and utilities for the H61DE/S3?

Drivers and utilities are provided on the Support CD that ships with the board and can also be downloaded from the ASRock website.
